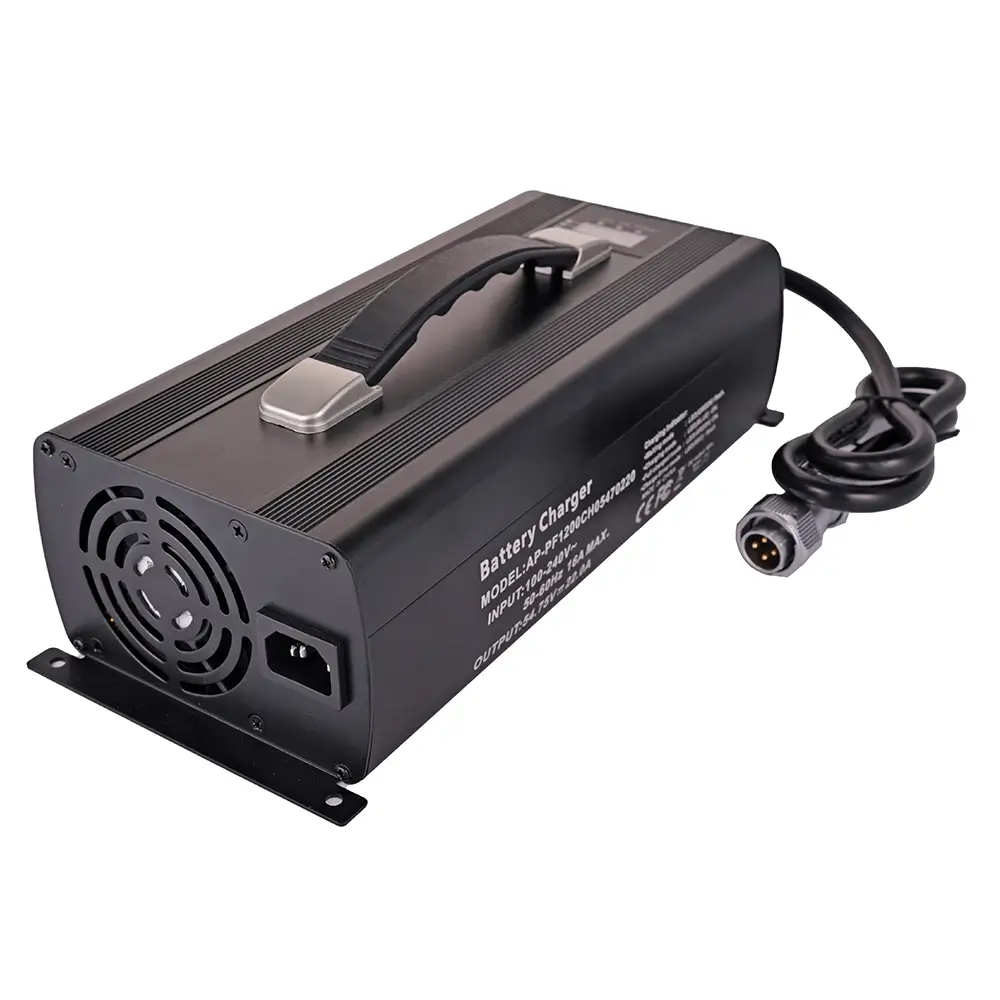

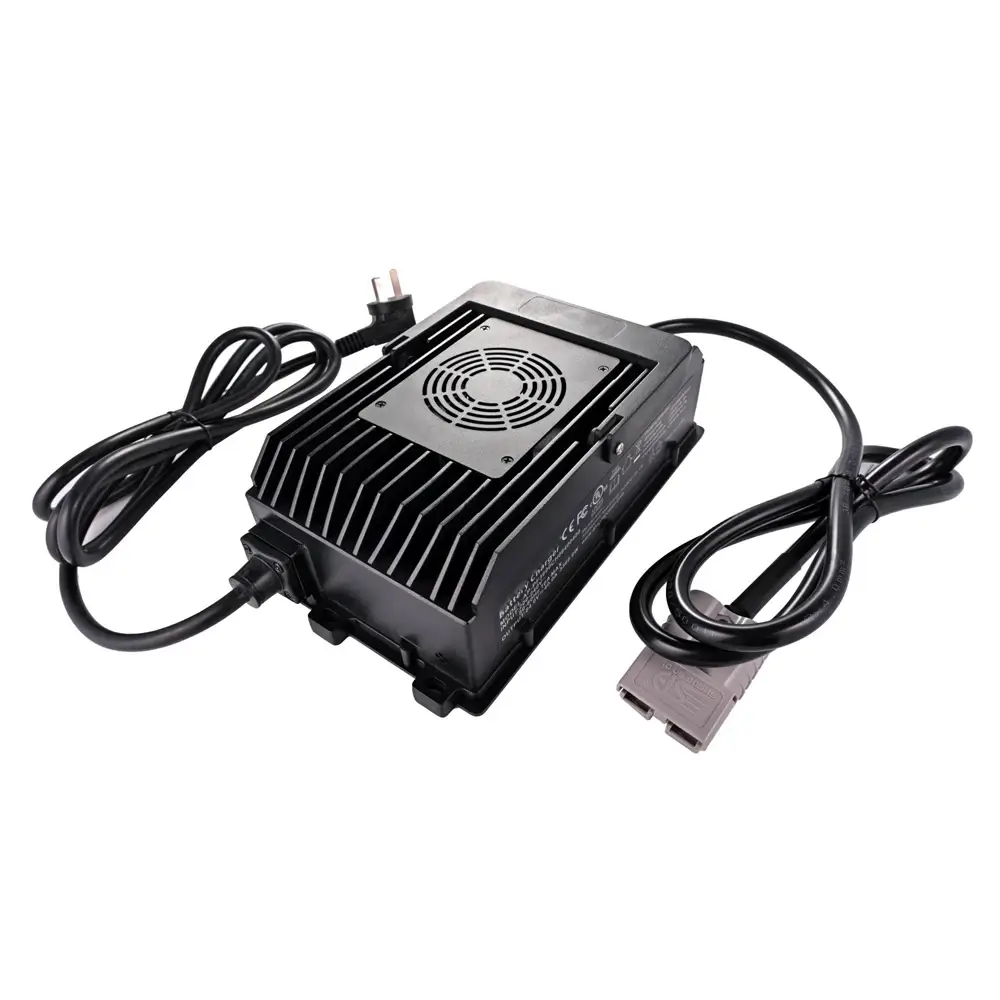

1kW Battery Charger
1kW Battery Charger
Product Model: XGXWAC1K0S012IA1
Rated Power: 1 kW
DC Output Voltage: 50-84 V
Output Current: 12 A
Efficiency: 95% or higher
Cooling Method: Air Cooling
Protection Level: IP65
1 kW charger with a nominal voltage of 72 V, featuring wide-range 100–240 VAC input and multiple output options. It delivers a power factor of 0.99, low THD, and IP65 level protection. It is enclosed in in a compact design with multiple built-in protection functions. Optional CAN or RS485 communication is supported.
Features
1. Wide input voltage range: 90–264 VAC.
2. Intelligent temperature control and protection with operating temperature range: –5 to +50°C. The storage temperature range: –40 to +70°C.
3. Conversion efficiency: 95% or higher.
4. Power factor: ≥ 0.99; THD:< 6%; high energy efficiency and low harmonic distortion.
5. Automatic shutdown after full charge.
6. Comprehensive protection functions, including over-voltage, under-voltage, over-temperature, short-circuit, reverse polarity, and over-current protection.
7. Compact size. Product dimensions: 213.5 mm × 123.5 mm × 79 mm (L × W × H).
Applications
Forklifts, Electric Bicycles (E-bikes), Electric Motorcycles, Electric Tricycles, Other Low-Speed Electric Vehicles
Free Shipping
3-Year Warranty
30-Day Returns
Nature-Inspired & Future-Ready
Meet our advanced charger: an all-in-one upgrade for your charging needs. Designed in meteoric gray, this minimalist charger represents the effortless harmony of nature and technology. With visual charging indicators and a streamlined build, it’s as smart as it is stylish.
Specifications
Simple & Portable
Innovative design based on the classic charger to meet the convenient charging needs of more devices.
LED Indicator
Know your battery's status at a glance with our innovative LED progress indicator.
Detachable AC/DC
Detachable cable design, away from messy trouble. Handy design, adapt to all kinds of scenes in life.
Noise Free
The advanced silent fan design eliminates noise annoyance and brings a pleasant charging experience.
